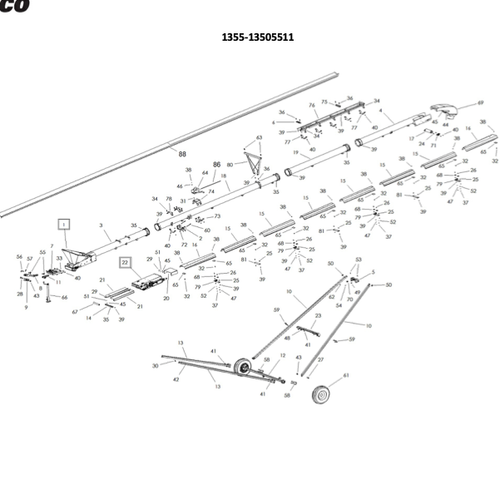

AGI Batco 1355 TD Main Assembly Parts Finder
Buy your AGI Batco parts online with direct factory to farm shipping!
Not finding the part you're looking for? Check out the Batco parts finder page at AGI-BATCO (ricambio.net) and contact us with a part number for availability.
Item No. Part No. Description
1 13000304P COLLAPSABLE HOPPER KIT 1300,
2 13010005 SUSPENSION BRACKET WITH TABS,
3 13020040 BT HOPPER SECTION 10' WITH SD BKTS
4 13020045 SPOUT SECTION 10' W/CABLE RTRN BKT
5 13030005 55 FRAME SLIDER
6 13030007 55 LARGE CABLE ATTACHMENT
7 13030010 HITCH 30-50
8 13030016 TONGUE
9 13030017 CLEVIS
10 13030026 1355 UPRIGHT ARMS
11 13030067 JACK STUB TONGUE
12 13030103 1355 AXLE (4 BOLT)
13 13030104 1355 AXLE ARM
14 13042094 HOPPER GUARD BRACKET
15 13042201 1300 5' WEATHER GUARD STD-61-1/2"
16 13042202 1300 5' WEATHER GUARD FLR- 61-1/2"
17 13070009 HOPPER/SPOUT ROLLER URETHANED
18 15020051 BOTTOM TUBE WITH ANCHORS
19 15020054 UPPER CENTER TUBE 10'
20 15040040-BK PINCH DRIVE FRONT GUARD BLACK
21 15042040 SD-HOPPER BELT GUARD
22 15590020 OBS S-DRIVE ASM W/PINCH
23 20030350 15/20 FRAME CROSS BRACE
24 P0113004 CRG BOLT, 1/2X1-1/2 ZN
25 P0113013 CRG BOLT, 7/16X1 GR5 ZN
26 P0113020 CRG BOLT, 5/16X1-1/2 ZN
27 P0118004 HEX BOLT, 1X3 GR8 ZN
28 P0118007 HEX BOLT, 1X4-1/2 GR8 ZN
29 P0118033 HEX BOLT, 1/4X3/4 GR8 ZN
30 P0115111 HEX BOLT, 3/4X2 GR8 ZN
31 P0118046 HEX BOLT, 3/8X1 GR8 ZN
32 P0115303 HEXSOC FLTHD CSCR, 3/8X1-1/4 UNC ZN
33 P0118013 HEX BOLT, 1/2X1-1/2 GR8 ZN
34 P0118017 HEX BOLT, 1/2X2-1/2 GR8 ZN
35 P0118076 HEX BOLT, 7/16X1 GR8 ZN
36 P0118077 HEX BOLT, 7/16X1-1/2 GR8 ZN
37 P0131017 HEX NUT, 5/16 GR8 ZN
38 P0134026 NYLON LOCK NUT, 3/8 GR8
39 P0134007 NYLON LOCK NUT, 7/16 GR8
40 P0134008 NYLON LOCK NUT, 1/2 GR8
41 P01340101 NYLON LOCK NUT, 5/8 GR8
42 P0134029 NYLON LOCK NUT, 3/4 GR8
43 P0134030 NYLON LOCK NUT, 1 GR8
44 P0141002 SELF DRILLING SCREW 1/4X1
45 P0151006 FLAT WASHER, 1/4 USS STL ZN
46 P0151009 FLAT WASHER, 3/8 USS STL ZN
47 P0151010 FLAT WASHER, 5/16 USS STL ZN
48 P0151011 FLAT WASHER, 5/8 USS STL ZN
49 P0151026 FLAT WASHER, 3/4 SAE STL ZN
50 P0151031 FLAT WASHER, 1 USS STL ZN
51 P0152004 LOCK WASHER, 1/4 ZN
52 P0152010 LOCK WASHER, 5/16 ZN
53 P0161001 COTTER PIN, 1/4X2 ZN
54 P0161002 COTTER PIN, 5/32X1-1/2 ZN
55 P0162001 HITCH PIN, 1/2X3 W HAIRPIN COTTER
56 P0162003 HITCH PIN, 1X3-1/2 ZN
57 P0163001 HAIR PIN, 3/16X3-1/4
58 P0183003 U-BOLT RND, 2-1/2X2-1/2X5/8 ZN
59 P0183003 U-BOLT RND, 2-1/2X2-1/2X5/8 ZN
60 P0183021 EYE BOLT, 5/8 ASM
61 P0614301 TIRE ASM-4BOLT ST205/75D15 LRC(KAN)
62 P0712105 CABLE CLAMP-5/16" GALV.
63 P0712109 CABLE CLAMP-3/8"
64 P0714103 WINCH-2500# BRAKE
65 P1010001 UNI-MOUNT PLATE CAST
66 P1012009 JACK-7000LB SQ.TUBE 25" EXT
67 P1021002 ROLLER HEX 13-7/8"
68 P1210030 BELT GUIDE BLOCK
69 P1211301 HOOD-SMALL ROUND 13 SERIES
70 P1211305 ROLLER 2" NYLON
71 P1711002 FLANGE UNIT-1-1/4"-SAFL206-20
72 P2219602 HEX NUT 1/2"
73 P2219801P U-CLAMP HANGER-10"X2-1/2"-BLACK
74 P2513001 1300/1500 WINCH MOUNT (NEW)
75 13032125 OBS BOLT ON ANGLE
76 13031019 13/15 5 BAND TRACK
77 P2513202P 2" U-CLAMP -PAINTED
78 P2513212P 2" LOCKING U-CLAMP PAINTED
79 130100811 1300 WG MOUNT BAR KIT WITH ROLLER
80 15010103 HIGH CABLE BRIDGE
81 P11130288 FITTED WP CROSS BAR (NO ROLLER)
82 P1243001 CABLE (ZIP) TIE 14" 120 LB
83 P2227989 OBS - MANUAL HOLDER AND LID
85 P0711115 CABLE-3/8" (68' )
86 P0711109 CABLE-5/16" (75'6")
87 P0145002 SQH SSCR, 7/16X2-1/2 UNC CUP BLK
88 13570551 BELT-13"-55SD-113'10" OAL
