AGI Batco 1500 Series 100' Swing Away Parts Finder
Buy your AGI Batco parts online with direct factory to farm shipping!
Not finding the part you're looking for? Check out the Batco parts finder page at AGI-BATCO (ricambio.net) and contact us with a part number for availability.

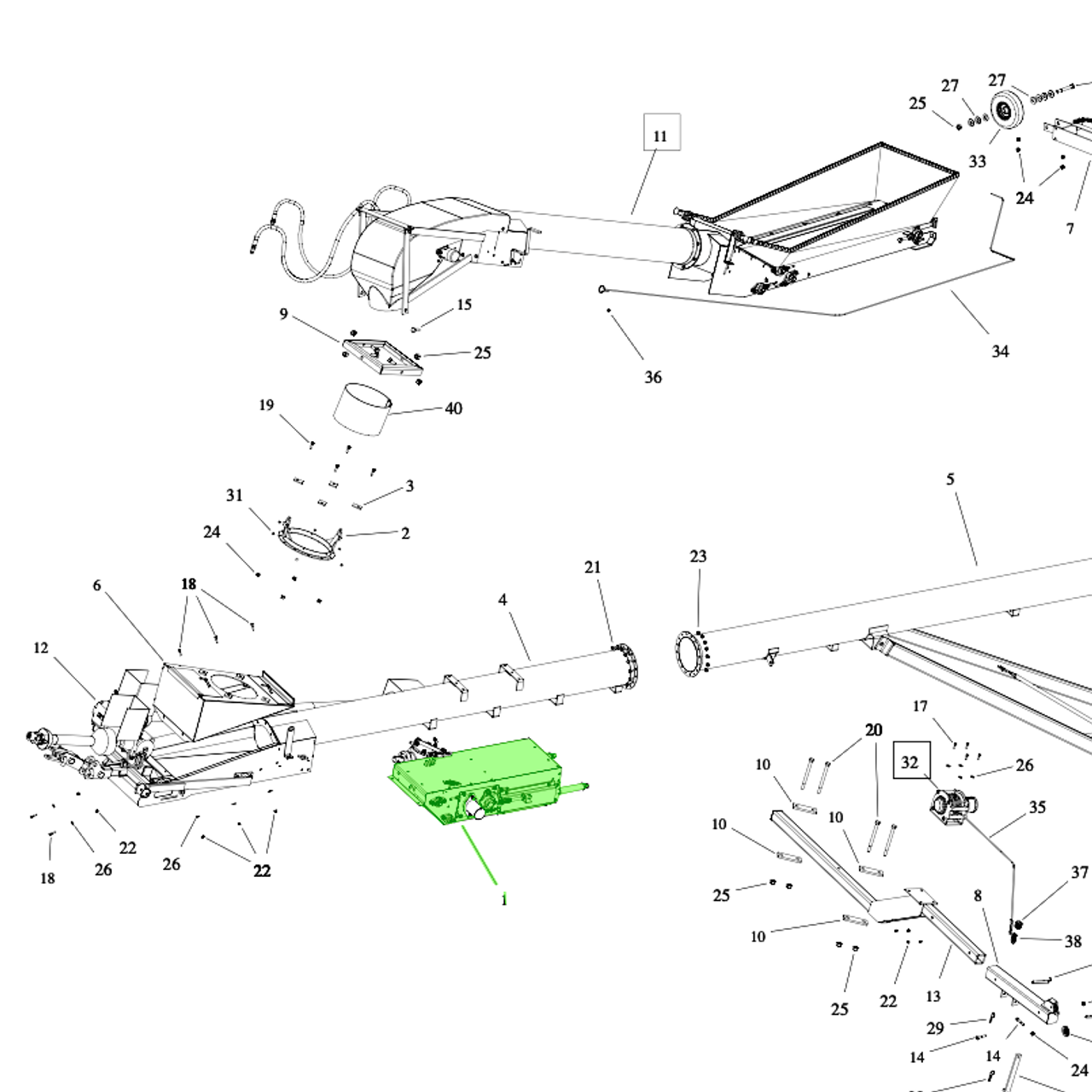

Item No. Part No. Description
1 15590020 OBS S-DRIVE ASM W/PINCH
2 13090026 SWIVEL BASE
3 13092018 MOUNTING TAB
4 15020040 BT HOPPER SECTION 10' WITH SD BKTS
5 15020051 BOTTOM TUBE WITH ANCHORS
6 15090009 SWING HOPPER BASE
7 15090013 SWING TRANSFER WHEELS
8 15090017 TRANSPORT ADJUSTMENT ARM
9 15090027 SWING SWIVEL TOP WELD
10 15092039 TRANSPORT ARM MOUNT PLATE
11 15584200 SWING AWAY -TRANS ASM HYD
12 15592230 FRONT DRIVE PTO KIT 15 SERIES
13 24090023 15/20/24 TRANSPORT ARM OFFSET
14 P0118018 HEX BOLT, 1/2X3 GR8 ZN
15 P0115111 HEX BOLT, 3/4X2 GR8 ZN
16 P0118044 BOLT 3/4" X 6" GR8 PLATED
17 P0115045 BOLT 3/8" X 1-1/4" GR5 PLATED
18 P0115113 HEX BOLT, 3/8X1-1/2 GR8 ZN
19 P0118013 HEX BOLT, 1/2X1-1/2 GR8 ZN
20 P0118048 HEX BOLT, 3/4X9 GR8 ZN
21 P0118076 HEX BOLT, 7/16X1 GR8 ZN
22 P0134026 NYLON LOCK NUT, 3/8 GR8
23 P0134007 NYLON LOCK NUT, 7/16 GR8
24 P0134008 NYLON LOCK NUT, 1/2 GR8
25 P0134029 NYLON LOCK NUT, 3/4 GR8
26 P0151009 FLAT WASHER, 3/8 USS STL ZN
27 P0151015 FLASH WASHER, 3/4 USS STL ZN
28 P0162004 HITCH PIN, 1/2X5 ZN
29 P0163001 HAIR PIN, 3/16X3-1/4
30 P0182101 TRNBLK, JAW-JAW 5/8X6
31 P0186001 RIVET, 3/16X1/2 STL
32 P0217634B WINCH-HYDRAULIC KIT
33 P0610407 TIRE -410/350X4 W/3/4"HUB (KANBAN)
34 P0711101 CABLE 1/8" 7 X 19 GAC
35 P0711118 CABLE-5/16" (26FT)
36 P0712104 CABLE CLAMP-1/8" GALV.
37 P0712105 CABLE CLAMP-5/16" GALV.
38 P0712301 GRAB HOOK-1/4"
39 P2210713 CABLE SHEAVE 2-3/4"OD
40 P11139010 SWING BELT SHIELD
41 15000717 BELT 15"-SWING TRANS-34'6" OAL
