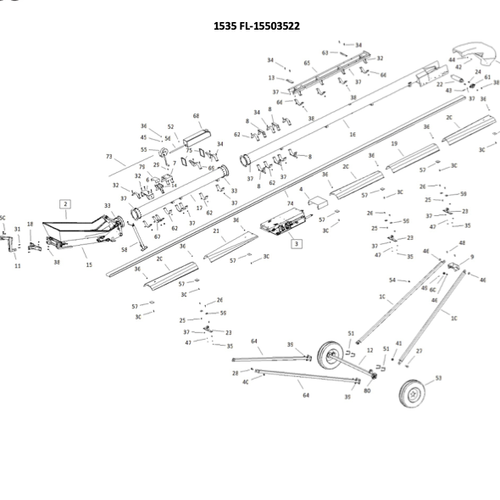

AGI Batco 1535 FL Main Assembly Parts Finder
Buy your AGI Batco parts online with direct factory to farm shipping!
Not finding the part you're looking for? Check out the Batco parts finder page at AGI-BATCO (ricambio.net) and contact us with a part number for availability.
Item No. Part No. Description
1 P1211501 HOOD-ROUND 15 SERIES (KANBAN)
2 15000303P HOPPER -COLLAPSABLE 1515
3 15590020 OBS S-DRIVE ASM W/PINCH
4 15040040-BK PINCH DRIVE FRONT GUARD BLACK
6 13010008 SUSPENSION BRACKET-NO TABS
7 13011013 WINCH MOUNT HD
8 13011043 PINCH S-DRIVE MOUNT BRACKET
9 13030042-BK 13/15 TRACK SLIDER BLACK
10 13030053 1330TD/1335FL UPRIGHT ARM
11 13030096 FL Z DROP TONGUE
12 13030100 AXLE 30-45-2-1/2" (WITH 8 LUGS)
13 13032094-BK 35/45 SMALL CABLE ATTACH BK
14 13060080 DIRECT DRV CONTROL BOX
15 15000320 OBS HOPPER TYPE -TRANSFER
16 15020047 SPOUT SECTION 20' W/RTRN MOUNTS
17 15020054 UPPER CENTER TUBE 10'
18 15030007-BK HITCH FL (ONE PC) BLACK
19 15042101-BK WEATHER GUARD 5' STD - 61-1/2" BLK
20 15042102-BK WEATHER GUARD 5' FLR -61-1/2" BLACK
21 15042103-BK WEATHER GUARD 5' FLAT - 61-1/2" BLK
22 15070009 HOPPER/SPOUT ROLLER URE
23 150100911-BK WEATHER GUARD MOUNT BAR KIT-POLY
24 P0113004 CRG BOLT, 1/2X1-1/2 ZN
25 P0113013 CRG BOLT, 7/16X1 GR5 ZN
26 P0113020 CRG BOLT, 5/16X1-1/2 ZN
27 P0118004 HEX BOLT, 1X3 GR8 ZN
28 P0115111 HEX BOLT, 3/4X2 GR8 ZN
29 P0118046 HEX BOLT, 3/8X1 GR8 ZN
30 P0115303 HEXSOC FLTHD CSCR, 3/8X1-1/4 UNC ZN
31 P0118013 HEX BOLT, 1/2X1-1/2 GR8 ZN
32 P0118017 HEX BOLT, 1/2X2-1/2 GR8 ZN
33 P0118076 HEX BOLT, 7/16X1 GR8 ZN
34 P0118077 HEX BOLT, 7/16X1-1/2 GR8 ZN
35 P0134027 LOCKNUT-NYLON-5/16" GRADE 8
36 P0134026 NYLON LOCK NUT, 3/8 GR8
37 P0134007 NYLON LOCK NUT, 7/16 GR8
38 P0134008 NYLON LOCK NUT, 1/2 GR8
39 P01340101 NYLON LOCK NUT, 5/8 GR8
40 P0134029 NYLON LOCK NUT, 3/4 GR8
41 P0134030 NYLON LOCK NUT, 1 GR8
42 P0141002 SELF DRILLING SCREW 1/4X1
43 P0145002 SQH SSCR, 7/16X2-1/2 UNC CUP BLK
44 P0151006 FLAT WASHER, 1/4 USS STL ZN
45 P0151009 FLAT WASHER, 3/8 USS STL ZN
46 P0151031 FLAT WASHER, 1 USS STL ZN
47 P0152010 LOCK WASHER, 5/16 ZN
48 P0161001 COTTER PIN, 1/4X2 ZN
49 P0161002 COTTER PIN, 5/32X1-1/2 ZN
50 P0162001 HITCH PIN, 1/2X3 W HAIRPIN COTTER
51 P0183003 U-BOLT RND, 2-1/2X2-1/2X5/8 ZN
52 P0184033 CLAMP WIRE HOSE .500"
53 P0615301 5 BOLT TIRE ASSEMBLY
54 P0712105 CABLE CLAMP-5/16" GALV.
55 P0714102 WINCH-1500# BRAKE
56 P0831008 FUEL LINE-1/4"ID
57 P1010001 UNI-MOUNT PLATE CAST
58 P1012010 JACK-1000LB ROUND JACK (15" EXT)
59 P1210030 BELT GUIDE BLOCK
60 P1211305 ROLLER 2" NYLON
61 P1711001 FLANGE UNIT-1-1/2"-SAFL208-24
62 P2219801P U-CLAMP HANGER-10"X2-1/2"-BLACK
63 13032125 OBS BOLT ON ANGLE
64 13030102 AXLE ARM 30/35TD/45-2-1/2"
65 13031020 13/15 4 BAND TRACK
66 P2513202P 2" U-CLAMP -PAINTED
67 P2513212P 2" LOCKING U-CLAMP PAINTED
68 P021200051 GAS TANK W/CAP W/FITTING-22L
68 1200011 CAP,FOR RESERVOIR & GAS TANK
69 13011038 PLASTIC TANK SIDE MOUNT W 2.5"
70 P2227989 OBS - MANUAL HOLDER AND LID
71 P1243001 CABLE (ZIP) TIE 14" 120 LB
73 P0711108 CABLE-5/16" (44' ) (50740)
74 15570352 BELT-15"-35FL-85' OAL
75 P029900216 GEAR CLAMP 32"
76 P0712114 THROTTLE CONTROL 15'
77 P0712102 CHOKE CABLE-15' LOCKING
78 155555300 CASTOR TONGUE WHEEL
79 13064002 OBS DIRECT DRIVE CONTROL TOP BLACK
80 P0614102 HUB411SG (STUD/GREASEABLE) 4-STUDS
