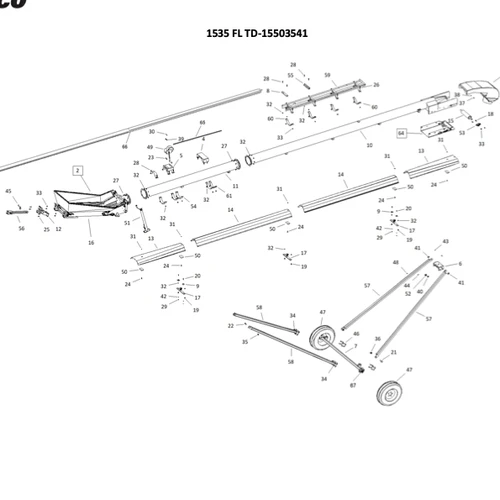

AGI Batco 1535 FL TD Main Assembly Parts Finder
Buy your AGI Batco parts online with direct factory to farm shipping!
Not finding the part you're looking for? Check out the Batco parts finder page at AGI-BATCO (ricambio.net) and contact us with a part number for availability.
Item No. Part No. Description
1 P1211501 HOOD-ROUND 15 SERIES (KANBAN)
2 15000303P HOPPER -COLLAPSABLE 1515
3 13000139 MOVER WHEEL MOVE DRIVE SYS.2.5 AXLE
4 13010008 SUSPENSION BRACKET-NO TABS
5 13011013 WINCH MOUNT HD
6 13030042-BK 13/15 TRACK SLIDER BLACK
7 13030100 AXLE 30-45-2-1/2" (WITH 8 LUGS)
8 13032094-BK 35/45 SMALL CABLE ATTACH BK
9 P1210030 BELT GUIDE BLOCK
10 15020047 SPOUT SECTION 20' W/RTRN MOUNTS
11 15020054 UPPER CENTER TUBE 10'
12 15030007-BK HITCH FL (ONE PC) BLACK
13 15042102-BK WEATHER GUARD 5' FLR -61-1/2" BLACK
14 15042121-BK WEATHER GUARD 10' STD -121-1/2" BLK
15 15070013 SPOUT DRIVE ROLLER-1-1/4" URE
16 15100031 1500 FL BOTTOM
17 150100911-BK WEATHER GUARD MOUNT BAR KIT-POLY
18 P0113001 CRG BOLT, 1/2X2 ZN
19 P0113013 CRG BOLT, 7/16X1 GR5 ZN
20 P0113020 CRG BOLT, 5/16X1-1/2 ZN
21 P0118004 HEX BOLT, 1X3 GR8 ZN
22 P0115111 HEX BOLT, 3/4X2 GR8 ZN
23 P0118046 HEX BOLT, 3/8X1 GR8 ZN
24 P0115303 HEXSOC FLTHD CSCR, 3/8X1-1/4 UNC ZN
25 P0118013 HEX BOLT, 1/2X1-1/2 GR8 ZN
26 P0118017 HEX BOLT, 1/2X2-1/2 GR8 ZN
27 P0118076 HEX BOLT, 7/16X1 GR8 ZN
28 P0118077 HEX BOLT, 7/16X1-1/2 GR8 ZN
29 P0131017 HEX NUT, 5/16 GR8 ZN
30 P0134026 NYLON LOCK NUT, 3/8 GR8
31 P0134026 NYLON LOCK NUT, 3/8 GR8
32 P0134007 NYLON LOCK NUT, 7/16 GR8
33 P0134008 NYLON LOCK NUT, 1/2 GR8
34 P01340101 NYLON LOCK NUT, 5/8 GR8
35 P0134029 NYLON LOCK NUT, 3/4 GR8
36 P0134030 NYLON LOCK NUT, 1 GR8
37 P0141002 SELF DRILLING SCREW 1/4X1
38 P0151006 FLAT WASHER, 1/4 USS STL ZN
39 P0151009 FLAT WASHER, 3/8 USS STL ZN
40 P0151026 FLAT WASHER, 3/4 SAE STL ZN
41 P0151031 FLAT WASHER, 1 USS STL ZN
42 P0152010 LOCK WASHER, 5/16 ZN
43 P0161001 COTTER PIN, 1/4X2 ZN
44 P0161002 COTTER PIN, 5/32X1-1/2 ZN
45 P0162001 HITCH PIN, 1/2X3 W HAIRPIN COTTER
46 P0183003 U-BOLT RND, 2-1/2X2-1/2X5/8 ZN
47 P0614301 TIRE ASM-4BOLT ST205/75D15 LRC(KAN)
48 P0712105 CABLE CLAMP-5/16" GALV.
49 P0714102 WINCH-1500# BRAKE
50 P1010001 UNI-MOUNT PLATE CAST
51 P1012010 JACK-1000LB ROUND JACK (15" EXT)
52 P1211305 ROLLER 2" NYLON
53 P1711002 FLANGE UNIT-1-1/4"-SAFL206-20
54 P2219801P U-CLAMP HANGER-10"X2-1/2"-BLACK
55 13032125 OBS BOLT ON ANGLE
56 13030001 STRAIGHT TONGUE
57 13030053 1330TD/1335FL UPRIGHT ARM
58 13030102 AXLE ARM 30/35TD/45-2-1/2"
59 13031020 13/15 4 BAND TRACK
60 P2513202P 2" U-CLAMP -PAINTED
61 P2513212P 2" LOCKING U-CLAMP PAINTED
62 P1243001 CABLE (ZIP) TIE 14" 120 LB
63 P2227989 OBS - MANUAL HOLDER AND LID
64 15597000 SPOUT PINCH RLLR KIT
65 P0711108 CABLE-5/16" (44' ) (50740)
66 15570353 BELT-15"-35TDFL-80'5" OAL
67 P0614102 HUB411SG (STUD/GREASEABLE) 4-STUDS
