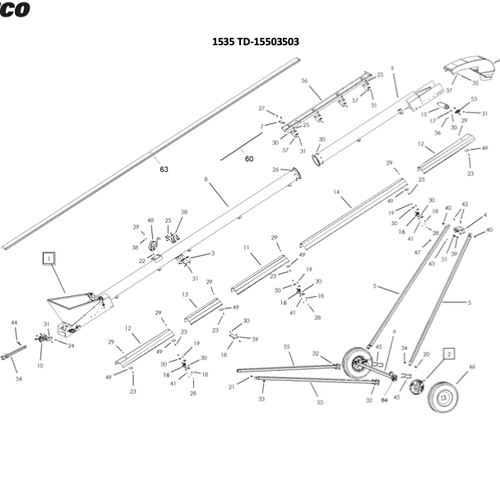

AGI Batco 1535 TD - 15503503 Main Assembly Parts Finder
Buy your AGI Batco parts online with direct factory to farm shipping!
Not finding the part you're looking for? Check out the Batco parts finder page at AGI-BATCO (ricambio.net) and contact us with a part number for availability.
Item No. Part No. Description
1 15000304P HOPPER -COLLAPSABLE STD
2 13000139 MOVER WHEEL MOVE DRIVE SYS.2.5 AXLE
3 13010008 SUSPENSION BRACKET-NO TABS
4 13030042-BK 13/15 TRACK SLIDER BLACK
5 13030024 1335-40-45 TD UPRIGHT ARMS
6 13030100 AXLE 30-45-2-1/2" (WITH 8 LUGS)
7 13032094-BK 35/45 SMALL CABLE ATTACH BK
8 15020044 BT HOPPER 20' W/ BRKTS
9 15020049 SPOUT SECTION 10' W/ RTRN MOUNTS
10 15030005 BELT TIGHTNER HITCH
11 15042101-BK WEATHER GUARD 5' STD - 61-1/2" BLK
12 15042102-BK WEATHER GUARD 5' FLR -61-1/2" BLACK
13 15042104-BK WEATHER GUARD 3' STD - 37-1/2" BLK
14 15042121-BK WEATHER GUARD 10' STD -121-1/2" BLK
15 15070013 SPOUT DRIVE ROLLER-1-1/4" URE
16 150100911-BK WEATHER GUARD MOUNT BAR KIT-POLY
17 P0113001 CRG BOLT, 1/2X2 ZN
18 P0113013 CRG BOLT, 7/16X1 GR5 ZN
19 P0113020 CRG BOLT, 5/16X1-1/2 ZN
20 P0118004 HEX BOLT, 1X3 GR8 ZN
21 P0115111 HEX BOLT, 3/4X2 GR8 ZN
22 P0118046 HEX BOLT, 3/8X1 GR8 ZN
23 P0115303 HEXSOC FLTHD CSCR, 3/8X1-1/4 UNC ZN
24 P0118013 HEX BOLT, 1/2X1-1/2 GR8 ZN
25 P0118017 HEX BOLT, 1/2X2-1/2 GR8 ZN
26 P0118076 HEX BOLT, 7/16X1 GR8 ZN
27 P0118077 HEX BOLT, 7/16X1-1/2 GR8 ZN
28 P0131017 HEX NUT, 5/16 GR8 ZN
29 P0134026 NYLON LOCK NUT, 3/8 GR8
30 P0134007 NYLON LOCK NUT, 7/16 GR8
31 P0134008 NYLON LOCK NUT, 1/2 GR8
32 P01340101 NYLON LOCK NUT, 5/8 GR8
33 P0134029 NYLON LOCK NUT, 3/4 GR8
34 P0134030 NYLON LOCK NUT, 1 GR8
35 P0141002 SELF DRILLING SCREW 1/4X1
36 P0145002 SQH SSCR, 7/16X2-1/2 UNC CUP BLK
37 P0151006 FLAT WASHER, 1/4 USS STL ZN
38 P0151009 FLAT WASHER, 3/8 USS STL ZN
39 P0151026 FLAT WASHER, 3/4 SAE STL ZN
40 P0151027 FLAT WASHER, 1 SAE STL ZN
41 P0152010 LOCK WASHER, 5/16 ZN
42 P0161001 COTTER PIN, 1/4X2 ZN
43 P0161002 COTTER PIN, 5/32X1-1/2 ZN
44 P0162001 HITCH PIN, 1/2X3 W HAIRPIN COTTER
45 P0183003 U-BOLT RND, 2-1/2X2-1/2X5/8 ZN
46 P0614301 TIRE ASM-4BOLT ST205/75D15 LRC(KAN)
47 P0712105 CABLE CLAMP-5/16" GALV.
48 P0714102 WINCH-1500# BRAKE
49 P1010001 UNI-MOUNT PLATE CAST
50 P1210030 BELT GUIDE BLOCK
51 P1211305 ROLLER 2" NYLON
52 P1211501 HOOD-ROUND 15 SERIES (KANBAN)
53 P1711002 FLANGE UNIT-1-1/4"-SAFL206-20
54 13030001 STRAIGHT TONGUE
55 13030102 AXLE ARM 30/35TD/45-2-1/2"
56 13031020 13/15 4 BAND TRACK
57 P2513202P 2" U-CLAMP -PAINTED
58 P2513212P 2" LOCKING U-CLAMP PAINTED
59 P11150181P WG CROSS BAR (NO ROLLER)-PAINTED
60 P0711107 CABLE-5/16" (40' ) (19884)
61 P1243001 CABLE (ZIP) TIE 14" 120 LB
62 P2227989 OBS - MANUAL HOLDER AND LID
63 15570350 BELT-15"-35TD-70'2" OAL
64 P0614102 HUB411SG (STUD/GREASEABLE) 4-STUDS
