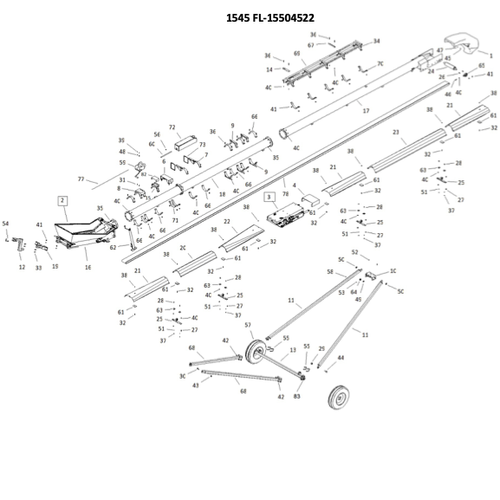

AGI Batco 1545 FL Main Assembly Parts Finder
Buy your AGI Batco parts online with direct factory to farm shipping!
Not finding the part you're looking for? Check out the Batco parts finder page at AGI-BATCO (ricambio.net) and contact us with a part number for availability.
Item No. Part No. Description
1 P1211501 HOOD-ROUND 15 SERIES (KANBAN)
2 15000303P HOPPER -COLLAPSABLE 1515
3 15590020 OBS S-DRIVE ASM W/PINCH
4 15040040-BK PINCH DRIVE FRONT GUARD BLACK
5 13000139 MOVER WHEEL MOVE DRIVE SYS.2.5 AXLE
6 13010008 SUSPENSION BRACKET-NO TABS
7 13011038 PLASTIC TANK SIDE MOUNT W 2.5"
8 13011013 WINCH MOUNT HD
9 13011043 PINCH S-DRIVE MOUNT BRACKET
10 13030042-BK 13/15 TRACK SLIDER BLACK
11 13030048-BK 45 FIELD LOADER UPRIGHT ARM BLACK
12 13030096 FL Z DROP TONGUE
13 13030100 AXLE 30-45-2-1/2" (WITH 8 LUGS)
14 13032094-BK 35/45 SMALL CABLE ATTACH BK
15 13060080 DIRECT DRV CONTROL BOX
16 15000320 OBS HOPPER TYPE -TRANSFER
17 15020047 SPOUT SECTION 20' W/RTRN MOUNTS
18 15020053 UPPER CENTER 20' MID TRUSS
19 15030007-BK HITCH FL (ONE PC) BLACK
20 15042101-BK WEATHER GUARD 5' STD - 61-1/2" BLK
21 15042102-BK WEATHER GUARD 5' FLR -61-1/2" BLACK
22 15042103-BK WEATHER GUARD 5' FLAT - 61-1/2" BLK
23 15042121-BK WEATHER GUARD 10' STD -121-1/2" BLK
24 15070009 HOPPER/SPOUT ROLLER URE
25 150100911-BK WEATHER GUARD MOUNT BAR KIT-POLY
26 P0113004 CRG BOLT, 1/2X1-1/2 ZN
27 P0113013 CRG BOLT, 7/16X1 GR5 ZN
28 P0113020 CRG BOLT, 5/16X1-1/2 ZN
29 P0118004 HEX BOLT, 1X3 GR8 ZN
30 P0115111 HEX BOLT, 3/4X2 GR8 ZN
31 P0118046 HEX BOLT, 3/8X1 GR8 ZN
32 P0115303 HEXSOC FLTHD CSCR, 3/8X1-1/4 UNC ZN
33 P0118013 HEX BOLT, 1/2X1-1/2 GR8 ZN
34 P0118017 HEX BOLT, 1/2X2-1/2 GR8 ZN
35 P0118076 HEX BOLT, 7/16X1 GR8 ZN
36 P0118077 HEX BOLT, 7/16X1-1/2 GR8 ZN
37 P0131017 HEX NUT, 5/16 GR8 ZN
38 P0134026 NYLON LOCK NUT, 3/8 GR8
39 P0134026 NYLON LOCK NUT, 3/8 GR8
40 P0134007 NYLON LOCK NUT, 7/16 GR8
41 P0134008 NYLON LOCK NUT, 1/2 GR8
42 P01340101 NYLON LOCK NUT, 5/8 GR8
43 P0134029 NYLON LOCK NUT, 3/4 GR8
44 P0134030 NYLON LOCK NUT, 1 GR8
45 P0141002 SELF DRILLING SCREW 1/4X1
46 P0145002 SQH SSCR, 7/16X2-1/2 UNC CUP BLK
47 P0151006 FLAT WASHER, 1/4 USS STL ZN
48 P0151009 FLAT WASHER, 3/8 USS STL ZN
49 P0151026 FLAT WASHER, 3/4 SAE STL ZN
50 P0151031 FLAT WASHER, 1 USS STL ZN
51 P0152010 LOCK WASHER, 5/16 ZN
52 P0161001 COTTER PIN, 1/4X2 ZN
53 P0161002 COTTER PIN, 5/32X1-1/2 ZN
54 P0162001 HITCH PIN, 1/2X3 W HAIRPIN COTTER
55 P0183003 U-BOLT RND, 2-1/2X2-1/2X5/8 ZN
56 P0184033 CLAMP WIRE HOSE .500"
57 P0614301 TIRE ASM-4BOLT ST205/75D15 LRC(KAN)
58 P0712105 CABLE CLAMP-5/16" GALV.
59 P0714103 WINCH-2500# BRAKE
60 P0831008 FUEL LINE-1/4"ID
61 P1010001 UNI-MOUNT PLATE CAST
62 P1012010 JACK-1000LB ROUND JACK (15" EXT)
63 P1210030 BELT GUIDE BLOCK
64 P1211305 ROLLER 2" NYLON
65 P1711001 FLANGE UNIT-1-1/2"-SAFL208-24
66 P2219801P U-CLAMP HANGER-10"X2-1/2"-BLACK
67 13032125 OBS BOLT ON ANGLE
68 13030102 AXLE ARM 30/35TD/45-2-1/2"
69 13031019 13/15 5 BAND TRACK
70 P2513202P 2" U-CLAMP -PAINTED
71 P2513212P 2" LOCKING U-CLAMP PAINTED
72 P021200051 GAS TANK W/CAP W/FITTING-22L
72 1200011 CAP,FOR RESERVOIR & GAS TANK
73 P029900216 GEAR CLAMP 32"
74 P1243001 CABLE (ZIP) TIE 14" 120 LB
75 P2227989 OBS - MANUAL HOLDER AND LID
77 P0711108 CABLE-5/16" (44' ) (50740)
78 15570452 BELT-15"-45FL-105' OAL
79 P0712114 THROTTLE CONTROL 15'
80 P0712102 CHOKE CABLE-15' LOCKING
81 155555300 CASTOR TONGUE WHEEL
82 13064002 OBS DIRECT DRIVE CONTROL TOP BLACK
83 P0614102 HUB411SG (STUD/GREASEABLE) 4-STUDS
