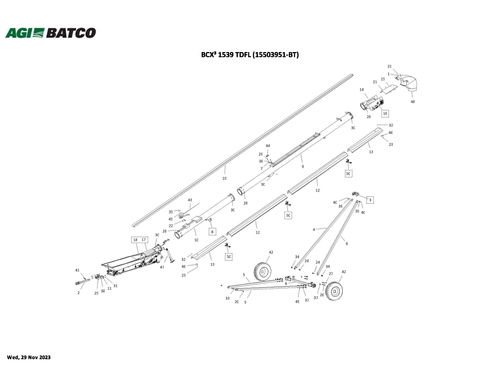

AGI Batco BCX3 1539 TDFL Main Assembly Parts Finder
Buy your AGI Batco parts online with direct factory to farm shipping!
Not finding the part you're looking for? Check out the Batco parts finder page at AGI-BATCO (ricambio.net) and contact us with a part number for availability.
Item No. Part No. Description Note
1 9208-00161 FENDER WASHER, 1/4X1 STL ZN
2 13030001 STRAIGHT TONGUE
3 13030042-BK 13/15 TRACK SLIDER BLACK
4 13030048-BK 45 FIELD LOADER UPRIGHT ARM BLACK
5 13030102 AXLE ARM 30/35TD/45-2-1/2"
6 13030115 AXLE 30-45-2-1/2" (WITH 8 LUGS)
7 13032094-BK 35/45 SMALL CABLE ATTACH BK
8 15011037 CONVEYOR ANGLE INDICATOR
9 15020169-OR CX3 1539TD 20' TOP SECTION ORANGE
10 15020172-OR CX3 1539TD 10' BOTTOM SECTION OR
11 15030028-BK CX3 FMD HITCH
12 15042121-BK WEATHER GUARD 10' STD -121-1/2" BLK
13 15042136-BK WEATHER GUARD 5.5' FLR-66-3/4" BLK
14 15080040-BK CX3 15S SPOUT BLACK
15 15080015-BK SPOUT CAP W/NUTSERTS BLACK
16 15080022-BK CX3 TD PINCH ASSEMBLY
17 15100036-BK CX3 HOPPER SUB-TD-BLACK
18 15100089 CX3 FLTD CLPS HPPR KIT URE FLASH
19 15570363 BELT-15"-CX3 TDFL1539-86'3" OAL
20 P0115111 HEX BOLT, 3/4X2 GR8 ZN
21 P0115204 HEX FLG BOLT, 1/4X3/4 ZN
22 P0115205 HEX FLG BOLT, 3/8X1 ZN
23 P0115303 HEXSOC FLTHD CSCR, 3/8X1-1/4 UNC ZN
24 P0118004 HEX BOLT, 1X3 GR8 ZN
25 P0118016 HEX BOLT, 1/2X2 GR8 ZN
26 P0118071 HEX BOLT, 5/8X2 GR8 ZN
27 P0118074 HEX BOLT, 5/8X5 GR8 ZN
28 P0118076 HEX BOLT, 7/16X1 GR8 ZN
29 P0118077 HEX BOLT, 7/16X1-1/2 GR8 ZN
30 P0134007 NYLON LOCK NUT, 7/16 GR8
31 P0134008 NYLON LOCK NUT, 1/2 GR8
32 P0134026 NYLON LOCK NUT, 3/8 GR8
33 P0134029 NYLON LOCK NUT, 3/4 GR8
34 P0134030 NYLON LOCK NUT, 1 GR8
35 P0134106 HEX FLG NUT, 3/8 UNC SERR GR5 ZN
36 P0151009 FLAT WASHER, 3/8 USS STL ZN
37 P0151011 FLAT WASHER, 5/8 USS STL ZN
38 P0151012 FLAT WASHER, 7/16 USS STL ZN
39 P0151015 FLASH WASHER, 3/4 USS STL ZN
40 P0161001 COTTER PIN, 1/4X2 ZN
41 P0162019 HITCH PIN, 5/8X3 W/ HAIRPIN COTTER
42 P0614301 TIRE ASM-4BOLT ST205/75D15 LRC(KAN)
43 P0711108 CABLE-5/16" (44' ) (50740)
44 P0712105 CABLE CLAMP-5/16" GALV.
45 P0714102 WINCH-1500# BRAKE
46 P1010001 UNI-MOUNT PLATE CAST
47 P1012010 JACK-1000LB ROUND JACK (15" EXT)
48 P1210059 CX3 15S HOOD
49 P01340101 NYLON LOCK NUT, 5/8 GR8
50 PARTK-15-42-BK 15S WG SINGLE GUIDED ROLLER KIT
51 15570013 15S BELT LACING PIN KIT
