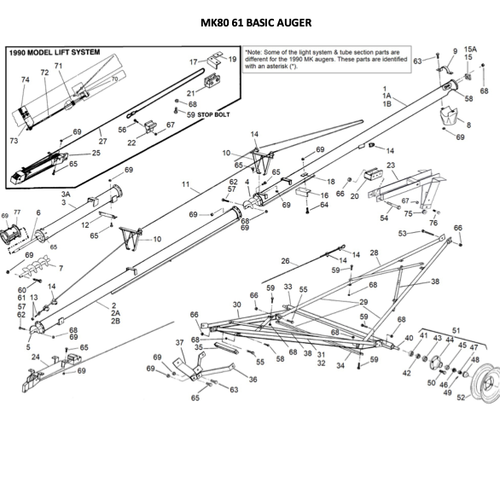

AGI Westfield MK 80-61 Basic Auger Parts Finder
Buy your AGI Westfield parts online with direct factory to farm shipping!
Not finding the part you're looking for? Check out the Westfield parts finder page at AGI-WESTFIELD (ricambio.net) and contact us with a part number for availability.
Item No. Part No. Description
1 10-18880 MK 8 UPPER TUBE ONLY
1A 10-18882 MK8-51/61/71 UPPER TUBE BDL
1B 10-18892 MK80-51/61/71 UPPER TUBE ONLY
2 10-18896 MK8-61/71 MIDDLE TUBE ONLY
2A 10-18898 MK8-61/71 MIDDLE TUBE BUNDLE
2B 10-18894 MK80-61/71 MIDDLE TUBE ONLY
3 202022YL MK80-61 LWR TUBE W/ FLARE TUBE ONLY
3A 202021YL MK80-61 LWR TUBE BDL
4 10-18888 MK80 UPPER FLIGHT
5 10-27319 MIDDLE FLIGHT, 8" X 25'
6 10-18910 MK80-61 LOWER FLIGHT W/BOOT FLIGHT
7 10-18920 MK80 BOOT FLIGHT SECTION
8 10-29306 SPOUT, 8 INCH ROLLED
9 10-19460 W80 HALF CLAMP 10716
10 10-19324RD WR/MK - SUPT BRKT WLDT- STD TRUSS,R
11 10-18854 MK61 TRUSS CABLE
12 10-18031 MK80 TRUSS ATTACH ANGLE
13 10-19331 EYE BOLT/NUT 1/2" X5" 4503071
14 10-19333 5/16 CABLE CLAMP
15 10-19567 BEARING, 1-1/4 PILLOW 4500067
15A 10-18852 1-1/4 PB BEARING 9900856
16 10-18745 MK UPPER TRACK STOP
17 10-18795 MK UPPER TRACKSTOP
18 10-18917 MK TRACK STOP WASHER
19 10-18929 MK TRACKSTOP WASHER
20 10-18922RD MK ROLLER TRACKSHOE, RED
21 10-18919 MK TRACK SHOE - RETRO
22 10-18918 MK SLIDER TRACKSHOE
23 10-18930 MK LIFT ASSIST
24 10-18034 MK61 CYLINDER ASSM
25 10-18760 MK61 CYLINDER ASSM (1990)
26 10-18043 MK61 LIFT CABLE
27 10-18923 MK61 LIFT CABLE
28 10-19524 MKX63/W56/61 UPPER LIFT ARM
29 10-19534 MKX63/WR56/61 UPPER FRAME BDL
30 10-19358 MKX63/W56/61 LOWER LEFT FRAME TUBE
31 10-19359 MKX63/W56/61 LOWER RIGHT FRAME TUBE
32 200903 MKX1063/WR56/61 LWR FRAME BDL 2020
33 10-19342 W56/61 AXLE
34 10-19378 W56/61 CROSSMEMBER
35 10-18914 MK SHORT CROSSMEMBER
36 10-18916 MK61 STABILIZER BRACE
37 10-18909 MK STABILIZER BRACKET
38 10-19796 FRAME BRACE
40 10-19263 46/51 AXLE SPINDLE 4500010-4
41 10-19264 HUB SEAL 4500059-5
42 10-19265 CONE BEARING 4500059-3
43 10-19266 CUP 4500059-4
44 10-19267 REG HUB 4500059-8
45 10-19268 CUP 4500059-2
46 10-19269 BEARING CONE 4500059-1
47 10-19270 NUT 3/4" SLOTTED 4500059-10
48 10-19272 REG DUST CAP 4500059-6
49 10-19271 COTTER PIN 1/8 X 1-1/2 C.ZINC PLTD
50 10-20565 1/2" X 1" NF #5 WHEEL BOLT PLTD
51 10-19467 REG HUB ASSEMBLY 4500059
52 10-21330 15 X 4.5 X 4 BOLT WHEEL ASSEMBLY
53 10-18094 BOLT 3/4" X 7-1/2"
54 10-19593 BOLT 3/4" X 6-1/2" 9900039
55 10-19592 BOLT 3/4" X 2" 9900823
56 10-19991 BOLT, 5/8" X 2" GR8 9900818
58 10-19589 BOLT 1/2" X 1-1/2" 9900536
59 10-19588 BOLT 1/2" X 1-1/4" 9900588
61 10-19546 BOLT 7/16" X 3"
62 10-19545 BOLT 7/16" X 2-1/4" 9900128
63 10-19981 BOLT,7/16"X1-3/4" GR8 9900168
64 10-18698 BOLT 7/16" X 1-1/4" 9900219
65 10-19542 BOLT, 7/16" X 1" PLTD 4500068
66 10-19601 LOCKNUT 3/4" 9900695
67 10-19600 LOCKNUT 5/8" 9900831
68 10-19599 LOCKNUT 1/2" 9900538
69 10-19598 LOCKNUT 7/16" 9900643
70 10-18925 MK UPPER ROD BRACKET
71 10-18927 MK RAM GUIDE CLAMP
72 10-18928 MK GUIDE ROD
73 10-18926 MK LOWER ROD BRACKET
74 10-17040 ROD GUIDE HALF CLAMP, MK80
75 10-23079 CABLE THIMBLE PULLEY
76 10-29251 5/8" X 2-3/4" NC BOLT GR 8 PLTD
77 201866YL MK80 FLARE TUBE
