AGI Westfield MKX2 13-84 (2023) Basic Auger Parts Finder
Buy your AGI Westfield parts online with direct factory to farm shipping!
Not finding the part you're looking for? Check out the Westfield parts finder page at AGI-WESTFIELD (ricambio.net) and contact us with a part number for availability.
Item No. Part No. Description

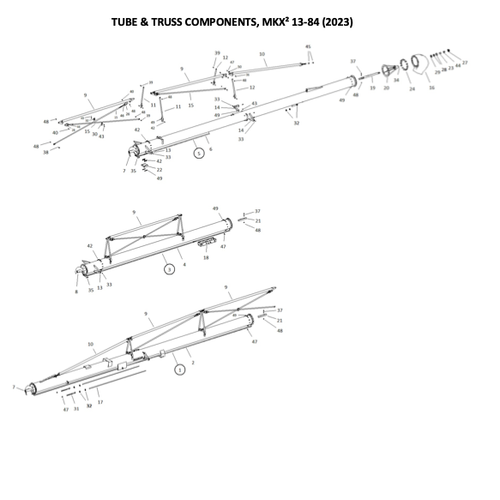

--Tube Components--
1 202624YL TUBE, BDL, LWR, MKX21384
2 202670YL TUBE, LWR, MKX21384
3 202625YL TUBE, BDL, 20 FT MDL, MKX21384/114
4 202687YL TUBE, 20FT MDL, MKX21384/114
5 202623YL TUBE, BDL, UPR, MKX21384/94/114
6 202667YL TUBE, UPR, MKX21384/94/114
7 202690 FLT, WLDT, 30FT, MKX2/X2/HX213
8 202689 FLT, WLDT, 20FT, MKX2/X2/HX213
9 200418RD MKX13 TOP TRUSS - COMMON
10 200419RD MKX13 TOP TRUSS - END
11 202722RD TRUSS TOWER, HIGH, 13/16
12 202704RD TRUSS TOWER, 13/16
13 202703RD BRKT, LONG SIDE TRUSS, 13
14 202701RD BRKT, SHORT SIDE TRUSS, 13
15 200421RD N/A USE 203671RD
16 202444 OPEN DISCHARGE SPOUT - 13"
17 10-20085 X1384 TRUSS CABLE, 70'
18 10-20295WH MKX/X13-84/94/114 TRACK SHOE, RED
19 202564 SHAFT, DISCHARGE EXT, 13"
20 202558RD SPOUT BRG FRAME, MKX13, RD
21 203753 SHAFT, FLIGHT CNX W/SLOT, MKX213
22 10-20296 MKX130-84/94/114 TRACK STOP
23 202566 TUBE, DISCHARGE SHAFT SPACER, 1.5"
24 202576PL SPOUT MNT FLANGE, 13"
26 200416RD N/A, USE 200416PL
27 202442 ASSY, DUST CAP W/ DECAL
28 202441 BRG, ASSY, TAPERED ROLLER, 2.00" ID
29 202440 SEAL, 2.00 ID, 3.371 OD, 0.438 W
30 10-17405 MK91 CROSSBRACE CLAMP
31 200531 5/8" X 14-1/2" EYE BOLT PLTD
32 10-18990 3/8" CABLE CLAMP
33 10-19333 5/16 CABLE CLAMP
34 10-19222 GREASE FTG ZERK 1/4-28 SAE CZ PLTD
35 10-29251 5/8" X 2-3/4" NC BOLT GR 8 PLTD
36 10-19590 BOLT 5/8" X 1-1/2" 9900167
37 10-18947 BOLT 1/2" X 4" 9900647
38 10-20772 1/2" X 2-1/2" GR8 PLTD
39 10-19974 BOLT, 1/2" 1-3/4" GR8 9900133
40 10-19589 BOLT 1/2" X 1-1/2" 9900536
42 10-18698 BOLT 7/16" X 1-1/4" 9900219
43 10-19542 BOLT, 7/16" X 1" PLTD 4500068
44 10-24423 1-1/2" NYLON LOCK NUT UNF GR8 PLTD
45 10-20080 1" NC HEX NUT PLTD
46 202181 OVAL LOCK NUT, 3/4-10 UNC, GR.5, ZN
47 10-19600 LOCKNUT 5/8" 9900831
48 10-17750 LOCKNUT 1/2"
49 10-17593 7/16" LOCKNUT
50 10-19966 WASHER, 5/8" FLAT 9900779
51 203776 PLT, MKX THRUST ADJ. SHIM
--Hopper Components--
1 202606RD ASSY, LP HPR, MKX2/X2-13
2 202867RD WLDT, LP HPR, MKX2/X2/HX2-10/13
3 10-22051 12-1/2 BELTING ATTACH STRAP
4 10-22049 4-3/4 BELTING ATTACH STRAP
5 201449PL MESH,HOPPER LP,MK/MKX/X,FORMED,PLTD
6 10-20461 MKX/X13 LP DOOR PIN, BENT
7 10-20399 3/16" X 5/8" GRIP RIVET
8 10-29896 X13 LP RUBBER BELTING
9 201455RD CHAIN TENSIONER COVER
10 10-21991 #50 - 1R X 47P ROLLER CHAIN (HEAVY)
11 201869RD FLT, WLDT, LP HPR, MKX2/X2-10/13,LH
12 201868RD FLT, WLDT, LP HPR, MKX2/X2-10/13,RH
13 201873RD DS, CTR LP HPR, 13"
14 201453PL CHAIN TENSIONER WELD'T, PLTD
15 201931 KEY, 1/4" X 1" , RND MACHINE
16 10-29175 6R U-JOINT (1"RD X 1")(BLACK)
17 202446 U-JOINT, 1.00 X 1.25 - 14 SPINE
18 10-29117 SETSCREW, 3/8" X 5/8" GR8 SQ HEAD
19 201452PL CHAIN TENSIONER, PLTD
20 10-17369 MK130 LP HOPPER CHAIN
21 10-17349 50A20 DOUBLE SPROCKET
22 201914RD FLT, WLDT, TRANS, MKX2/X2-13
23 10-22050 10 BELTING ATTACH STRAP
24 10-19149 1" BUSHING
25 201450GA LP HOPPER MESH STRAP
26 10-20430 #50 (HEAVY) CONNECTOR LINK
27 10-17389 #50 HALF LINK 0510010 (HEAVY)
28 10-17522 LOW PRO HOPPER WHEEL
29 10-17583PL BUSHING SUPPORT, PLTD
30 10-17352PL BUSHING SUPT, LP HOPR SHAFT, PLTD
31 10-17394 MK LP FIXED WHEEL AXLE
32 10-18817 1 FLANGE BEARING ONLY 4503130
33 10-18694 FLANGE
34 10-29894 50C15 X 5/8 IDLER SPROCKET
35 10-19225 SETSCREW, 3/8" UNC X 3/8" REGULAR
36 10-19131 50B14 X 1 SPROCKET 348081
37 10-19222 GREASE FTG ZERK 1/4-28 SAE CZ PLTD
38 10-19463 210 HITCH PIN 4500070
39 10-29998 LYNCH PIN 3/16 X 1-1/4 Y.ZINC PLTD
40 10-17584 PLUG
41 10-27484 5/8" X 2-1/4" GR8 BOLT
42 10-19590 BOLT 5/8" X 1-1/2" 9900167
43 10-22937 3/8X1-3/4 CARRIAGE BOLT UNC GR5 PL
44 10-18955 BOLT 3/8" X 1" 9900699
45 10-27986 CARRIAGE BOLT, 3/8" X 1" PLTD
46 10-19540 BOLT, 3/8 X 3/4" PLT 9900530
47 10-21558 5/16" X 1" BOLT GR 8 PLTD
48 9900800 1/4" X 3/4" NC BOLT GR 5 PLTD
49 10-19600 LOCKNUT 5/8" 9900831
50 10-17402 LOCKNUT 3/8" 0601007
51 10-17754 HEX NUT 3/8" 9900660
52 10-20082 3/8" WING NUT PLTD
53 203757 NUT, NYLOCK, 5/16, GR8, UNC, ZN
54 10-28449 LOCKNUT 1/4" 9900562
55 10-19966 WASHER, 5/8" FLAT 9900779
56 10-18096 5/8" RIM WASHER
57 10-17392 WASHER 3/8" FLAT PLTD 0601008
58 9900683 1/4" FLAT WASHER PLTD
59 10-27336 WASHER, 5/16" FLAT 9900529
60 203760 BOLT,CARRIAGE,3/8X 2 1/4,GR5,UNC,ZN
--PTO Shaft Components--
1&2 10-29140 YELLOW END CV PTO SHAFT
1 10-29247 PTO SHAFT 2-BOLT SHEAR
2 10-17545 1/2 PTO SHAFT, IMP END GREEN/YELLOW
3 10-17546 N/A USE 10-18270 - REPAIR KIT
4 10-17547 CROSS KIT
5 10-17548 SHIELD
6 10-17549 SHIELD
7 10-17550 CENTRE HOUSING
8 10-17551 YOKE
9 10-29246 3/8" X 1" GR8 SHEAR BOLT AND NUT
9A 10-18956 3/8" 2-WAY LOCKNUT
13 10-21993 GUARD REPAIR KIT
14 10-21966 GUARD REPAIR KIT
15 10-18470 KIT, 31 X .25DIA CHROME ALLOY BALL
16 10-19995 BOLT, 3/8" X 1/2"
17 10-29245 SHEAR ASSEMBLY
