AGI Westfield WRX 10-71 Basic Auger Parts Finder
Buy your AGI Westfield parts online with direct factory to farm shipping!
Not finding the part you're looking for? Check out the Westfield parts finder page at AGI-WESTFIELD (ricambio.net) and contact us with a part number for availability.
Item No. Part No. Description

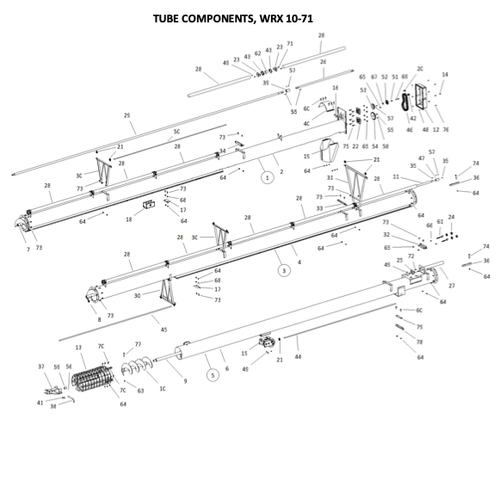

--Tube Components--
1 10-23950 WRX10-41/51/61/71 UPPER TUBE BDL
2 10-23949 WRX10-41/51/61/71 UPPER TUBE ONLY
3 200500YL WRX10-71 MID TUBE BDL
4 200499YL WRX10-71 MID TUBE ONLY
5 200498YL WRX10-71 LWR TUBE BDL #
6 200497YL WRX10-71 LOWER TUBE ONLY #
7 10-23183 10" UPPER FLIGHT, STX2/XTA
8 10-21693 MKX1063/73 MIDDLE FLIGHT
9 10-23728 LWR FLT W/INTK FLT, STX2/XTA10-46
10 10-17535 WR100 INTAKE FLIGHT 4506113
11 200502 WRX 71 MID DS WELD'T
12 10-17160RD OIL COVER HEAD 10", RED
13 10-29738 STX/TFX210/R10 INTAKE W/SHIELD,BUSH
14 10-17179 3/8 OIL BATH PLUG
15 10-19569 K2550 WINCH & HANDLE
16 10-23617GA SHIELD STOP, UPPER, STX2/XTA
17 10-18762 J TRACK STOP 4503127
18 10-17203RD 56/71 TRACK SHOE, RED
19 200568RD WLDT MKX/X10 SPOUT
20 10-19323 #80 CONNECTOR LINK (HEAVY)
21 10-19147 1/4 CABLE CLAMP 4500081
22 10-19567 BEARING, 1-1/4 PILLOW 4500067
23 10-23250PL FLANGE BEARING HANGER BRKT, STX2
24 10-19333 5/16 CABLE CLAMP
25 10-23268 DS GUARD HANGER BRKT, LWR, STX2/XTA
26 10-29736 UPPER SHORT DRIVESHAFT, TFX2, RD
27 10-23248RD GUARD, DRIVE SHAFT, 20-7/8",RD
28 10-23614RD GUARD, DRIVE SHAFT, 57-3/4",RD
29 10-23184 MIDDLE DS, STX2/XTA8/10-36/41/46/51
30 10-19324RD WR/MK - SUPT BRKT WLDT- STD TRUSS,R
31 10-19325RD W71 TRUSS BRACKET, RED
32 10-27960RD CABLE ANCHOR BRACKET, RED
33 200507RD WIDE CABLE ANCHOR (RED), WRX
34 10-27863RD CABLE ANCHOR, TOP, RED
35 10-19224 1/4" X 1" WOODRUFF KEY (4503192)
36 10-21690 MKX/X10 FLIGHT CONNECTING SHAFT
37 10-17180 WR100 CLEVIS
38 10-17181 CLEVIS PIN 4503069
39 10-19770 DRIVESHAFT CONNECTOR, 1-1/4"
40 10-27235 10" HITCH RING
41 10-17383 3610 GRIP CLIP 2605004
42 10-17400 #80 HALF LINK (HEAVY)
43 10-18695 1-1/4" FLANGE, 2-HOLE 4500062
44 10-19253 W71 CABLE
45a 10-27965 TF/TFX46 TRUSS CABLE
46 10-23185 CHAIN #80 X 31P W/CONN LINK (HEAVY)
47 10-19119 1 DRIVESHAFT CONNECTR 4503149
48 10-19594 WHIZNUT 1/4" 9900130
49 10-19596 WHIZNUT 3/8" 9900788
50 10-17380 MKX1063 TRUSS/MK91 LIFT CABLE
51 10-24382 IDLER SPROCKET SPACER, UTX
52 202547 IDLER ROLLER, 2-1/2" OD
53 10-23180 80B12 X 1-1/4 SPROCKET
54 10-23831 80B19 X 1-1/4 SPROCKET
55 10-19606 KEY, 1/4" X 1-1/2" SQ 700615
56 10-19222 GREASE FTG ZERK 1/4-28 SAE CZ PLTD
57 10-19225 SETSCREW, 3/8" UNC X 3/8" REGULAR
58 10-29119 SETSCREW, 3/8" X 1" GR8 SQ HEAD
59 10-19776 BUSHING, 1-1/4"
60 10-28744 7/16 X 1-1/2 NC BOLT GR5 PLTD
61 10-19331 EYE BOLT/NUT 1/2" X5" 4503071
62 10-18691 1-1/4 WOOD BEARING
63 10-17402 LOCKNUT 3/8" 0601007
64 10-19598 LOCKNUT 7/16" 9900643
65 10-19599 LOCKNUT 1/2" 9900538
66 10-19602 HEX NUT 1/2"
67 10-17401 WASHER 1/2" FLAT 9900565
68 10-17182 7/16 TRACK WASHER
69 9900560 1/2" X 2-1/4" NC BOLT GR 5 PLTD
70 10-18698 BOLT 7/16" X 1-1/4" 9900219
71 10-18955 BOLT 3/8" X 1" 9900699
72 10-19540 BOLT, 3/8 X 3/4" PLT 9900530
73 10-19542 BOLT, 7/16" X 1" PLTD 4500068
74 10-19546 BOLT 7/16" X 3"
75 10-19589 BOLT 1/2" X 1-1/2" 9900536
76 10-20445 1/4"X1"NCBOLTGR8PLTD
77 10-27981 BOLT, 3/8" X 3" GR5
78 201574RD BRKT, LOWER CABLE TRUSS MOUNT
79 201575RD PLT, LOWER CABLE TRUSS SPACER MOUNT
--Intake Hopper Kit--
1 05-A249 WR100 HOPPER KIT
2 10-29319 10" - INTAKE HOPPER ASSEMBLY
3 10-29317
4 10-29175
4A 10-17029 CROSS KIT
5 10-29331 10" - BUSHING SUPPORT
6 10-19322 1-1/4 2 HOLE FLANGE BEARING
6A 10-18695 1-1/4" FLANGE, 2-HOLE 4500062
6B 10-18853 1-1/4 FLANGE BRG ONLY 4503131
7 10-29323
8 10-29337
9 10-22050 10 BELTING ATTACH STRAP
10 10-22049
11 10-19648 SADDLE PIN 4503223
12 10-29321
13 10-29325
14 10-29335
15 10-29334
16 10-29328
17 10-29338
18 10-29355
19 10-29353
20 10-29354
21 10-29336 INTAKE HOPPER TOW BAR
22 200387 WELD'T, OFFSET HITCH ADAPTER
23 10-21775
24 10-21779
25 10-21806
26b 10-19149 1" BUSHING
27 10-17383 3610 GRIP CLIP 2605004
28 10-19463 210 HITCH PIN 4500070
29 10-18185 LARGE FLANGE RIVET
30 10-20399 3/16" X 5/8" GRIP RIVET
31 10-19224 1/4" X 1" WOODRUFF KEY (4503192)
32 10-18186
33 10-19222 GREASE FTG ZERK 1/4-28 SAE CZ PLTD
34 10-19225 SETSCREW, 3/8" UNC X 3/8" REGULAR
35 10-19596
36 10-19590
37 10-18698 BOLT 7/16" X 1-1/4" 9900219
38 10-28746 3/8" X 3-1/4" NC BOLT GR 5 PLTD
39 10-19595
40 10-19600
41 10-19598 LOCKNUT 7/16" 9900643
42 10-18955
43 10-17402
44 10-18947 BOLT 1/2" X 4" 9900647
45 10-19599 LOCKNUT 1/2" 9900538
46 200388 TUBE, SPACER BUSHING
--PTO Shaft--
1 10-19806 PTO SHAFT, YELLOW END (60")
2 10-18601 YELLOW TRAC END PTO SHAFT
3 10-18599 YELLOW IMP END PTO SHAFT
4 10-18605 60 OUTER SHIELD
5 10-18603 60 INNER SHIELD
6 10-18477 14R TRACTOR YOKE
7 10-18480 N/A USE 10-18105
8 10-18459 14R CROSS KIT
9 10-18593 PTO ROLL PIN
