AGI Westfield WRX 8-51 Basic Auger Parts Finder
Buy your AGI Westfield parts online with direct factory to farm shipping!
Not finding the part you're looking for? Check out the Westfield parts finder page at AGI-WESTFIELD (ricambio.net) and contact us with a part number for availability.
Item No. Part No. Description

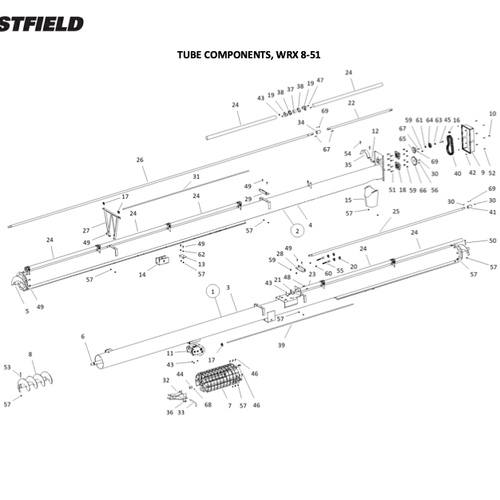

--Tube Components--
1 200579YL WRX8-51 LWR TUBE BDL #
2 200514YL WRX8-41/46/51/56/61/71/76 UTB
3 200578YL WRX 8-51 LWR TUBE ONLY #
4 200521YL WRX 8-41 UPPER TUBE ONLY
5 200475 STX2-8 UPPER FLIGHT WELDMENT
6 10-29735 TFX208/R8 51 LWR FLIGHT W/INTAKE FL
7 10-29726 STX/TFX208/R8 INTAKE W/SHIELD,BUSHG
8 10-18920 MK80 BOOT FLIGHT SECTION
9 10-17160RD OIL COVER HEAD 10", RED
10 10-17179 3/8 OIL BATH PLUG
11 10-19152 K1550 WINCH & HANDLE 0702001
12 10-23617GA SHIELD STOP, UPPER, STX2/XTA
13 10-18762 J TRACK STOP 4503127
14 10-17203RD 56/71 TRACK SHOE, RED
15 10-29306 SPOUT, 8 INCH ROLLED
16 10-19323 #80 CONNECTOR LINK (HEAVY)
17 10-19147 1/4 CABLE CLAMP 4500081
18 10-19567 BEARING, 1-1/4 PILLOW 4500067
19 10-23250PL FLANGE BEARING HANGER BRKT, STX2
20 10-19333 5/16 CABLE CLAMP
21 10-23268 DS GUARD HANGER BRKT, LWR, STX2/XTA
22 10-29736 UPPER SHORT DRIVESHAFT, TFX2, RD
23 10-23248RD GUARD, DRIVE SHAFT, 20-7/8",RD
24 10-23614RD GUARD, DRIVE SHAFT, 57-3/4",RD
25 200501 WRX 51 LOWER DS WELD'T
26 10-23184 MIDDLE DS, STX2/XTA8/10-36/41/46/51
27 10-19324RD WR/MK - SUPT BRKT WLDT- STD TRUSS,R
28 10-27960RD CABLE ANCHOR BRACKET, RED
29 10-27863RD CABLE ANCHOR, TOP, RED
30 10-19224 1/4" X 1" WOODRUFF KEY (4503192)
31 10-18825 J46 TRUSS CABLE 4504070
32 10-17123 WR CLEVIS
33 10-17181 CLEVIS PIN 4503069
34 10-19770 DRIVESHAFT CONNECTOR, 1-1/4"
35 10-19460 W80 HALF CLAMP 10716
36 10-17383 3610 GRIP CLIP 2605004
37 10-18691 1-1/4 WOOD BEARING
38 10-18695 1-1/4" FLANGE, 2-HOLE 4500062
39 10-18824 J51/TF/TFX41 WINCH CABLE
40 10-23185 CHAIN #80 X 31P W/CONN LINK (HEAVY)
41 10-19119 1 DRIVESHAFT CONNECTR 4503149
42 10-19594 WHIZNUT 1/4" 9900130
43 10-19596 WHIZNUT 3/8" 9900788
44 10-19149 1" BUSHING
45 9900560 1/2" X 2-1/4" NC BOLT GR 5 PLTD
46 10-18698 BOLT 7/16" X 1-1/4" 9900219
47 10-18955 BOLT 3/8" X 1" 9900699
48 10-19540 BOLT, 3/8 X 3/4" PLT 9900530
49 10-19542 BOLT, 7/16" X 1" PLTD 4500068
50 10-19545 BOLT 7/16" X 2-1/4" 9900128
51 10-19589 BOLT 1/2" X 1-1/2" 9900536
52 10-20445 1/4"X 1" NC BOLT GR8 PLTD
53 10-19546 BOLT 7/16" X 3"
54 10-28744 7/16 X 1-1/2 NC BOLT GR5 PLTD
55 10-19331 EYE BOLT/NUT 1/2" X5" 4503071
56 10-29119 SETSCREW, 3/8" X 1" GR8 SQ HEAD
57 10-19598 LOCKNUT 7/16" 9900643
59 10-19599 LOCKNUT 1/2" 9900538
60 10-19602 HEX NUT 1/2"
61 10-17401 WASHER 1/2" FLAT 9900565
62 10-17182 7/16 TRACK WASHER
63 10-24382 IDLER SPROCKET SPACER, UTX
64 202547 IDLER ROLLER, 2-1/2" OD
65 10-23180 80B12 X 1-1/4 SPROCKET
66 10-23181 80B18 X 1 SPROCKET
67 10-19606 KEY, 1/4" X 1-1/2" SQ 700615
68 10-19222 GREASE FTG ZERK 1/4-28 SAE CZ PLTD
69 10-19225 SETSCREW, 3/8" UNC X 3/8" REGULAR
--Intake Hopper Kit--
1 05-A260 TFX208 INTAKE HOPPER KIT
2 10-29318 8" - INTAKE HOPPER ASSEMBLY
3 10-29317
4 10-29175
4A 10-17029 CROSS KIT
5 10-29329 8"/13" - BUSHING SUPPORT
6 10-19322 1-1/4 2 HOLE FLANGE BEARING
6A 10-18695 1-1/4" FLANGE, 2-HOLE 4500062
6B 10-18853 1-1/4 FLANGE BRG ONLY 4503131
7 10-29323
8 10-29809 8" - TRANSPORT CHANNEL R8/TFX208
9 10-22050 10 BELTING ATTACH STRAP
10 10-22049
11 10-19648
12 10-29320 BH/WR/TFX 8" INTAKE HPR FLIGHTING
13 10-29806 8" INTAKE HPR TRANSITION R8/TFX208
14 10-29333 8" - BOTTOM TUBE CLAMP
15 10-29332 8" - TOP TUBE CLAMP
16 10-29805 8" - TRANSITION FLIGHT, R8/TFX208
17 10-29338
18 10-29355
19 10-29353
20 10-29354
21 10-29336 INTAKE HOPPER TOW BAR
22 200387 WELD'T, OFFSET HITCH ADAPTER
23 10-21968 8" ACCESS DOOR, R8/TFX2 TRANSITION
24 10-21779
25 10-21806
26b 10-19149 1" BUSHING
27 10-17383 3610 GRIP CLIP 2605004
28 10-19463 210 HITCH PIN 4500070
29 10-18185 LARGE FLANGE RIVET
30 10-20399 3/16" X 5/8" GRIP RIVET
31 10-19224 1/4" X 1" WOODRUFF KEY (4503192)
32 10-18186
33 10-19222 GREASE FTG ZERK 1/4-28 SAE CZ PLTD
34 10-19225 SETSCREW, 3/8" UNC X 3/8" REGULAR
35 10-19596
36 10-19590
37 10-18698
38 10-18699 BOLT 3/8" X 2-1/2" 9900512
39 10-19595
40 10-19600
41 10-19598 LOCKNUT 7/16" 9900643
42 10-18955
43 10-17402
44 10-18947 BOLT 1/2" X 4" 9900647
45 10-19599 LOCKNUT 1/2" 9900538
--PTO Shaft--
1 10-19806 PTO SHAFT, YELLOW END (60")
2 10-18601 YELLOW TRAC END PTO SHAFT
3 10-18599 YELLOW IMP END PTO SHAFT
4 10-18605 60 OUTER SHIELD
5 10-18603 60 INNER SHIELD
6 10-18477 14R TRACTOR YOKE
7 10-18480 N/A USE 10-18105
8 10-18459 14R CROSS KIT
9 10-18593 PTO ROLL PIN
