AGI Westfield WRX 8-56 Basic Auger Parts Finder
Buy your AGI Westfield parts online with direct factory to farm shipping!
Not finding the part you're looking for? Check out the Westfield parts finder page at AGI-WESTFIELD (ricambio.net) and contact us with a part number for availability.
Item No. Part No. Description

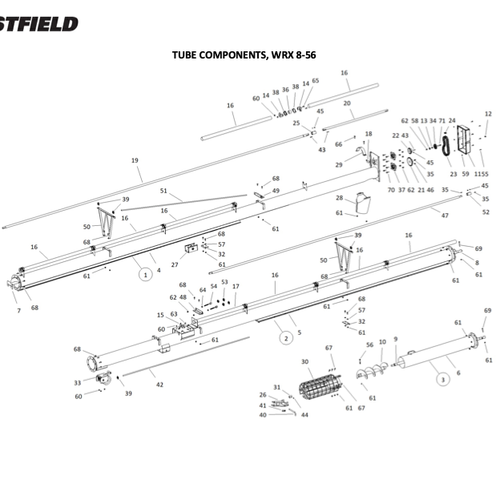

--Tube Components--
1 200514YL WRX8-41/46/51/56/61/71/76 UTB
2 200527YL WRX 8-56/61 MIDDLE TUBE BUNDLE
3 200993YL STX2/WRX 8-31 / 8-56 LTB #
4 200521YL WRX 8-41 UPPER TUBE ONLY
5 200526YL WRX 8-56/61 MIDDLE TUBE ONLY
6 200991YL STX208/WRX8-31 LOWER TUBE ONLY #
7 200475 STX2-8 UPPER FLIGHT WELDMENT
8 10-27319 MIDDLE FLIGHT, 8" X 25'
9 10-29731 TFX208 31 LWR FLIGHT W/INTAKE FLGHT
10 10-18920 MK80 BOOT FLIGHT SECTION
11 10-17160RD OIL COVER HEAD 10", RED
12 10-17179 3/8 OIL BATH PLUG
13 10-24382 IDLER SPROCKET SPACER, UTX
14 10-23250PL FLANGE BEARING HANGER BRKT, STX2
15 10-23268 DS GUARD HANGER BRKT, LWR, STX2/XTA
16 10-23614RD GUARD, DRIVE SHAFT, 57-3/4",RD
17 200503RD GUARD, DRIVE SHAFT, 42-1/8",RD
18 10-23617GA SHIELD STOP, UPPER, STX2/XTA
19 10-23184 MIDDLE DS, STX2/XTA8/10-36/41/46/51
20 10-29736 UPPER SHORT DRIVESHAFT, TFX2, RD
21 10-23181 80B18 X 1 SPROCKET
22 10-23180 80B12 X 1-1/4 SPROCKET
23 10-23185 CHAIN #80 X 31P W/CONN LINK (HEAVY)
24 10-19323 #80 CONNECTOR LINK (HEAVY)
25 10-19770 DRIVESHAFT CONNECTOR, 1-1/4"
26 10-17123 WR CLEVIS
27 10-17203RD 56/71 TRACK SHOE, RED
28 10-29306 SPOUT, 8 INCH ROLLED
29 10-19460 W80 HALF CLAMP 10716
30 10-29726 STX/TFX208/R8 INTAKE W/SHIELD,BUSHG
31 10-19149 1" BUSHING
32 10-18762 J TRACK STOP 4503127
33 10-19569 K2550 WINCH & HANDLE
34 202547 IDLER ROLLER, 2-1/2" OD
35 10-19224 1/4" X 1" WOODRUFF KEY (4503192)
36 10-18691 1-1/4 WOOD BEARING
37 10-19567 BEARING, 1-1/4 PILLOW 4500067
38 10-18695 1-1/4" FLANGE, 2-HOLE 4500062
39 10-19147 1/4 CABLE CLAMP 4500081
40 10-17181 CLEVIS PIN 4503069
41 10-17383 3610 GRIP CLIP 2605004
42 10-19252 W56-61 CABLE
43 10-19606 KEY, 1/4" X 1-1/2" SQ 700615
44 10-19222 GREASE FTG ZERK 1/4-28 SAE CZ PLTD
45 10-19225 SETSCREW, 3/8" UNC X 3/8" REGULAR
46 10-29119 SETSCREW, 3/8" X 1" GR8 SQ HEAD
47 200569 WRX 61 MIDDLE DRIVE SHAFT WELD'T
48 10-27960RD CABLE ANCHOR BRACKET, RED
49 10-27863RD CABLE ANCHOR, TOP, RED
50 10-19324RD WR/MK - SUPT BRKT WLDT- STD TRUSS,R
51 10-28898 MKX1053 TRUSS/MKF71 LIFT CABLE
52 10-19119 1 DRIVESHAFT CONNECTR 4503149
53 10-19333 5/16 CABLE CLAMP
54 10-19331 EYE BOLT/NUT 1/2" X5" 4503071
55 10-20445 1/4"X1"NCBOLTGR8PLTD
56 10-19546 BOLT 7/16" X 3"
57 10-17182 7/16 TRACK WASHER
58 10-17401 WASHER 1/2" FLAT 9900565
59 10-19594 WHIZNUT 1/4" 9900130
60 10-19596 WHIZNUT 3/8" 9900788
61 10-19598 LOCKNUT 7/16" 9900643
62 10-19599 LOCKNUT 1/2" 9900538
63 10-19540 BOLT, 3/8 X 3/4" PLT 9900530
64 10-19602 HEX NUT 1/2"
65 10-18955 BOLT 3/8" X 1" 9900699
66 10-28744 7/16 X 1-1/2 NC BOLT GR5 PLTD
67 10-18698 BOLT 7/16" X 1-1/4" 9900219
68 10-19542 BOLT, 7/16" X 1" PLTD 4500068
69 10-19545 BOLT 7/16" X 2-1/4" 9900128
70 10-19589 BOLT 1/2" X 1-1/2" 9900536
71 9900560 1/2" X 2-1/4" NC BOLT GR 5 PLTD
--Intake Hopper Kit--
1 05-A260 TFX208 INTAKE HOPPER KIT
2 10-29318 8" - INTAKE HOPPER ASSEMBLY
3 10-29317
4 10-29175
4A 10-17029 CROSS KIT
5 10-29329 8"/13" - BUSHING SUPPORT
6 10-19322 1-1/4 2 HOLE FLANGE BEARING
6A 10-18695 1-1/4" FLANGE, 2-HOLE 4500062
6B 10-18853 1-1/4 FLANGE BRG ONLY 4503131
7 10-29323
8 10-29809 8" - TRANSPORT CHANNEL R8/TFX208
9 10-22050 10 BELTING ATTACH STRAP
10 10-22049
11 10-19648
12 10-29320 BH/WR/TFX 8" INTAKE HPR FLIGHTING
13 10-29806 8" INTAKE HPR TRANSITION R8/TFX208
14 10-29333 8" - BOTTOM TUBE CLAMP
15 10-29332 8" - TOP TUBE CLAMP
16 10-29805 8" - TRANSITION FLIGHT, R8/TFX208
17 10-29338
18 10-29355
19 10-29353
20 10-29354
21 10-29336 INTAKE HOPPER TOW BAR
22 200387 WELD'T, OFFSET HITCH ADAPTER
23 10-21968 8" ACCESS DOOR, R8/TFX2 TRANSITION
24 10-21779
25 10-21806
26b 10-19149 1" BUSHING
27 10-17383 3610 GRIP CLIP 2605004
28 10-19463 210 HITCH PIN 4500070
29 10-18185 LARGE FLANGE RIVET
30 10-20399 3/16" X 5/8" GRIP RIVET
31 10-19224 1/4" X 1" WOODRUFF KEY (4503192)
32 10-18186
33 10-19222 GREASE FTG ZERK 1/4-28 SAE CZ PLTD
34 10-19225 SETSCREW, 3/8" UNC X 3/8" REGULAR
35 10-19596
36 10-19590
37 10-18698
38 10-18699 BOLT 3/8" X 2-1/2" 9900512
39 10-19595
40 10-19600
41 10-19598 LOCKNUT 7/16" 9900643
42 10-18955
43 10-17402
44 10-18947 BOLT 1/2" X 4" 9900647
45 10-19599 LOCKNUT 1/2" 9900538
--PTO Shaft--
1 10-19806 PTO SHAFT, YELLOW END (60")
2 10-18601 YELLOW TRAC END PTO SHAFT
3 10-18599 YELLOW IMP END PTO SHAFT
4 10-18605 60 OUTER SHIELD
5 10-18603 60 INNER SHIELD
6 10-18477 14R TRACTOR YOKE
7 10-18480 N/A USE 10-18105
8 10-18459 14R CROSS KIT
9 10-18593 PTO ROLL PIN
