Description
Optimize Your Grain Storage & Preserve Quality
Unlock the full potential of your existing corrugated hopper bins with the robust and reliable Brock 12" Hopper Aeration Kit. Engineered by Brock Grain Systems, a leader in grain storage solutions, this kit is designed to seamlessly integrate with new or existing Brock hopper-bottom bins ranging from 9 to 21 feet (2.7 to 6.4 meters) in diameter. Adding efficient aeration is crucial for maintaining grain quality, preventing spoilage, and maximizing your storage flexibility.
Key Benefits:
- Preserve Grain Quality: Effectively cool grain and temporarily hold wet grain for longer periods, significantly reducing the risk of hot spots and spoilage. Gain valuable flexibility during busy harvest times.
- Versatile Grain Management: Use your hopper bin for cooling freshly dried grain directly from the dryer or securely store dried grain, increasing system capacity without adding another bin.
- Maximize Storage Potential: Add essential aeration capabilities to your existing hopper bins, enhancing their functionality.
Key Features:
- Engineered for Performance: Designed by Brock and rigorously field-tested, this kit comes ready for installation.
- Efficient Design: Features a low-profile interior air distribution box that minimizes interference with grain flow.
- Flexible Fan Integration: Built to accommodate most standard 12-inch (304.8-mm) aeration fans. The intelligently designed fan mount allows easy installation and removal of compatible fans (like the Brock GUARDIAN® Series), even when the bin contains grain.
- Expandable Aeration: Achieve desired airflow by installing multiple aeration sections per bin.
- Durable Construction: Built with quality materials to withstand demanding agricultural environments for long-lasting performance.
Compatibility:
- Bin Compatibility: Fits new or existing Brock corrugated hopper-bottom bins.
- Bin Diameter: Suitable for 9-foot to 21-foot (2.7 m to 6.4 m) diameter bins.
- Fan Compatibility: Accepts most 12-inch (304.8 mm) diameter aeration fans (Fan not included in base kit; optional configurations available).
Why Choose Brock?
Brock Grain Systems, a division of CTB, Inc., a Berkshire Hathaway Company, is renowned for innovative and reliable grain storage, handling, and conditioning solutions. Investing in a Brock aeration kit means choosing quality, durability, and performance backed by decades of industry expertise.
Installation:

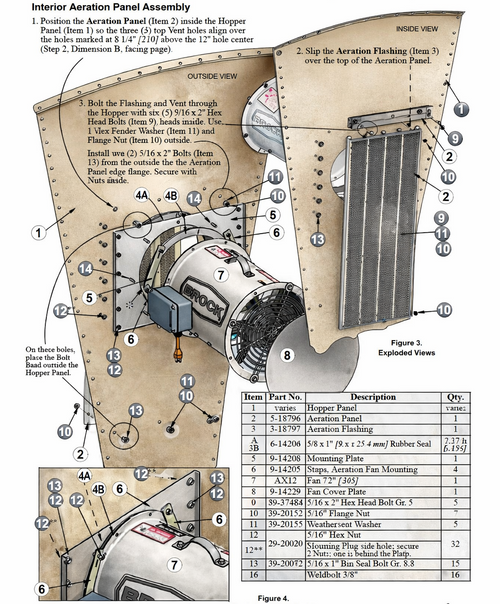

The kit is designed for straightforward installation. Pre-punched hopper panels are available to simplify the process (sold separately or as part of specific bin configurations). Refer to Brock installation manual BR-1332 for detailed guidance.
Product Specifications:
- Product Type: Hopper Bin Aeration Kit
- Brand: Brock Grain Systems
- Model/SKU: 3-19072-12 (Base Kit - Fan Not Included)
- Compatible Bin Types: Brock Corrugated Hopper-Bottom Bins (New or Existing)
- Compatible Bin Diameters: 9 ft, 12 ft, 15 ft, 18 ft, 21 ft (2.7 m to 6.4 m)
- Required Fan Size: 12-inch (304.8 mm) diameter
- Material: High-quality materials for durability (Typically galvanized steel for Brock components; confirmation recommended for specific parts)
- Kit Features: Low-profile air distribution box, easy-install fan mount (compatible with Brock GUARDIAN® Fans), expandable design.
- Primary Uses: Grain cooling, temporary wet grain holding, dry grain storage aeration.
- Installation Manual: BR-1332
Configuration Options:
This Brock Hopper Aeration Kit is available in several configurations on GrainHandlingDirect.com, primarily differing by the included fan. Please select the option that best suits your needs and electrical setup:
- 12" Aeration Kit No Fan (SKU: 3-19072-12):
- This is the base aeration kit only, without a fan included.
- Choose this option if you already have a compatible 12-inch aeration fan or plan to source one separately.
- 12" Aeration Kit With Axial Fan:
- These options bundle the base aeration kit with a compatible 12-inch Brock GUARDIAN® Series Axial Fan.
- Axial Fan Details: Brock GUARDIAN® Axial Fans are known for high airflow at lower static pressures, featuring TEAO (Totally Enclosed, Air Over) motors, durable construction, and efficient airfoil blades.
- Selection Guidance: Choose the fan configuration that matches your bin size, aeration requirements (consult airflow charts if available), and your farm's electrical service (Phase and Voltage).
Important Considerations:
- Verify Selection: Double-check the specific HP, Phase, and Voltage details in the dropdown menu on the product page before adding to your cart.
- Airflow Needs: Ensure the selected fan provides adequate airflow (CFM) for your specific bin size and grain type/condition. Consult Brock's fan performance data or an expert if unsure.
- Transitions: While the kit includes a fan mount, optimal airflow often requires a fan transition piece. Check if a transition is included or recommended for your chosen fan configuration.
