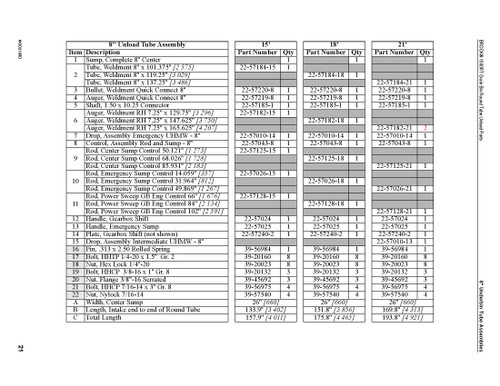

Brock 1500 Series 8" Unload Parts List

Please refer to the included Brock manual to find the part number needed.

• 095013 Flat Washer 3/8'',
• 097029 HH Machine Screw,
• 22-57039 Cover Rod & Sump Control Shaft,
• 22-57040-8 Control Weldment Rod & Sump,
• 22-57042-8 Mount Rod & Sump Control End,
• 22-57047 Rack Weldment Control Rod,
• 22-57048 Chain Roller Stainless,
• 22-57051 Driveshaft Sprocket,
• 22-57054 Sprocket Weldment Double,
• 22-57055 Tube Socket AXLE,
• 22-57056 Crank Handle Weldment,
• 22-57090-1 Binsweep Backboard,
• 22-57090-10 Binsweep Backboard,
• 22-57090-10-3 Binsweep Backboard,
• 22-57090-11 Binsweep Backboard,
• 22-57090-12 Binsweep Backboard,
• 22-57090-13 Binsweep Backboard,
• 22-57090-14 Binsweep Backboard,
• 22-57090-15 Binsweep Backboard,
• 22-57090-16 Binsweep Backboard,
• 22-57090-17 Binsweep Backboard,
• 22-57090-18 Binsweep Backboard,
• 22-57090-19 Binsweep Backboard,
• 22-57090-2 Binsweep Backboard,
• 22-57090-2-3 Binsweep Backboard,
• 22-57090-24 Binsweep Backboard,
• 22-57090-25 Binsweep Backboard,
• 22-57090-26 Binsweep Backboard,
• 22-57090-27 Binsweep Backboard,
• 22-57090-28 Binsweep Backboard,
• 22-57090-29 Binsweep Backboard,
• 22-57090-30 Binsweep Backboard,
• 22-57090-31 Binsweep Backboard,
• 22-57090-32 Binsweep Backboard,
• 22-57090-33 Binsweep Backboard,
• 22-57090-4 Binsweep Backboard,
• 22-57090-6 Binsweep Backboard,
• 22-57090-7 Binsweep Backboard,
• 22-57090-8 Binsweep Backboard,
• 22-57090-9 Binsweep Backboard,
• 22-57097 Shaft Joiner Sweep,
• 2-57099 Gearbox Shaft,
• 22-57107-8 Mount Weldment Drive Wheel Gearbox,
• 22-57109 Washer Wheel,
• 22-57118-3 Mount Bearing,
• 22-57129 Drive Gearbox,
• 22-57129-3 Sprocket Weldment,
• 22-57131 U-Joint Sweep Universal,
• 22-57132 Sprocket,
• 22-57137 Tread Assembly Molded Drive Wheel,
• 22-57138-13 Radial Deep Groove Bearing,
• 22-57138-14 Bearing Sleeve,
• 22-57138-15 Radial Deep Groove Bearing,
• 22-57138-16 Bronze Soft Tin Washer,
• 22-57138-3 Drive Shaft Input,
• 22-57138-7 Weld-On Hub,
• 22-57144-1 Auger Sweep Weldment,
• 22-57144-15 Auger Sweep Weldment,
• 22-57144-18 Auger Sweep Weldment,
• 22-57144-2 Auger,
• 22-57144-21 Auger Sweep Weldment,
• 22-57144-24 Auger Sweep Weldment,
• 22-57144-27 Auger Sweep Weldment,
• 22-57144-30 Auger Sweep Weldment,
• 22-57144-33 Auger Sweep Weldment,
• 22-57144-36 Auger,
• 22-57144-4 Auger Sweep Weldment,
• 22-57144-42 Auger,
• 22-57144-48 Auger Sweep Weldment,
• 22-57144-5 Auger Sweep Weldment,
• 22-57144-54 Auger Sweep Weldment,
• 22-57144-6 Auger Sweep Weldment,
• 22-57144-60 Auger Sweep Weldment,
• 22-57166-1 Bracket Weldment Bearing,
• 22-57167 Wheel Assembly Carrier,
• 22-57217 16SLV Bearing,
• 22-57228 Locking Grommet Plastic,
• 22-57237 Flange Bearing,
• 22-57238 Plate Back Pivot,
• 22-57239 Plate Pivot Inside,
• 22-57247 Upper Standard Gearbox,
• 22-57269 Binsweep Backboard Splice,
• 22-57270-8 Gearbox Sweep Pivot Weldment,
• 22-57276 Straight Fitting,
• 22-57557-2 Round Tube Power Sweep Extension,
• 39-20008 HH Cap Bolt 5/16''x1'',
• 39-20020 Hex Nut 5/16'',
• 39-20023 Lock Nut 1/4'',
• 39-20099 HH Cap Bolt 1/2''x1'',
• 39-20132 HH Cap Bolt 3/8''x1'',
• 39-20207 SAE Washer1/4'',
• 39-20220 HH Cap Bolt 1/4''x1.25'',
• 39-45692 Serrated Flange Nut 3/8'',
• 39-56981 Partial Thread Screw 5/16'',
• 39-56982 Washer Lock 5/16'',
• 39-56984 Rolled Spring Pin,
• 39-56985 Screw Shoulder,
• 39-56986 Set Screw,
• 39-56989 Nylon Hex Nut 5/8'',
• 39-56994 Flat Washer,
• 39-56998 Pin Cotter,
• 39-57137 Rolled Spring Pin,
• 39-57272 Carriage Bolt,
• 39-57538 HH Cap Bolt 7/16''x2.25'',
• 39-57540 Nylock Nut
